2000 Liter LPG Skid Station

Name: 2000 Liter LPG Skid Station
Brand: MKIMM
Price: 1 USD

Wholesale 2000 Liter LPG Skid Station from china suppliers

Brand Name : MKIMM

Model Number : MKIMM

Certification : ISO

Place of Origin : henan

MOQ : 1

Price : bargain

Payment Terms : T/T,L/C,Paypal,Alipay,West Union and so on

Supply Ability : 25 every month

Delivery Time : 15days

Packaging Details : wooden box

Condition : New

Machinery Test Report : Provided

Core Components : Motor, Pressure vessel, Pump

Capacity : customized

Outer Material : Q345R

Max Working Pressure(MPa) : 2.21

Warranty : 1 Year

Applicable Industries : Manufacturing Plant, Energy & Mining

Application : Gas cylinder filling, lpg gas cylinder refilling

Filling medium : LPG, propane

Contact Now

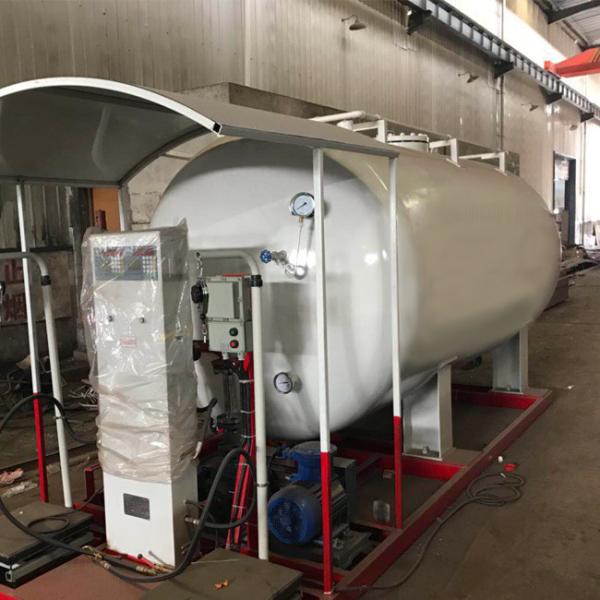

2000L LPG Gas Skid Mounted Filling Station With LPG Pump And Dispenser

Description

The LPG skid is divided into storage tanks. skid mounted. The distributor and the control terminal are integrated to form the LPG filling station, which can easily fill the gas and bring convenience to the region. The distribution pipeline of the skid adopts a double pipeline structure, which can ensure that the whole LPG skid can operate normally when a group of pipelines are damaged during routine maintenance or accident, so as to avoid losses to customers.

Specifications

TAKN VOLUME(m³)	10m³	12m³	20m³	25m³	32m³	40m³	50m³	63m³
Filling Weight (kg)	4035	4850	8070	10090	12920	16410	20180	25420
Design Pressure (Mpa)	1.61
MAWP(Mpa)	1.77
Design Temperature (℃)	-20℃-50 ℃
Shell /Head Thickness (mm)	10mm/10mm	10mm/10mm	12mm/13mm	12mm/13mm	12mm/13mm	13mm/14mm	13mm/14mm	13mm/ 14mm
Design Standard	Chinese Standard
Tank Material	Q345R
Processing pipe material	20#
Application	1. Scale for bottling cylinder 2. LPG dispenser for fueling car 3. LPG pump or compressor for truck
Accessories	Including pressure gauge, thermometer, float level gauge, ball valves, safety valves, safety return valves, check valves, filter, globe valves, processing pipes, explosion-proof light, alarm and gas leakage detection system, explosion-proof cabinet for lighting and power distribution etc.
Shipment method	Volume above 20m³ will be shipped by bulk vessel , below 20m³ will be shipped by container vessel

Advantage

LPG skid is one of the most important equipment in the gas supply process. It can conveniently integrate functions such as storage and filling and distribution. It can also be made into a removable LPG skid, saving customers’ installation and movement. time and energy.
